With the increasing demand for high bandwidth in 5G, AI (Artificial Intelligence), data centers, and cloud computing, the 800G-DR8 QSFP-DD optical transceiver module has drawn the essential attention of the industry. It is ideal for 800G Ethernet connections, breakout 2x 400G and 8x 100G, data centers, and cloud network applications. The article will take you through the 800G-DR8 QSFP-DD optical transceiver module.
What is the 800G-DR8 QSFP-DD Optical Transceiver Module?

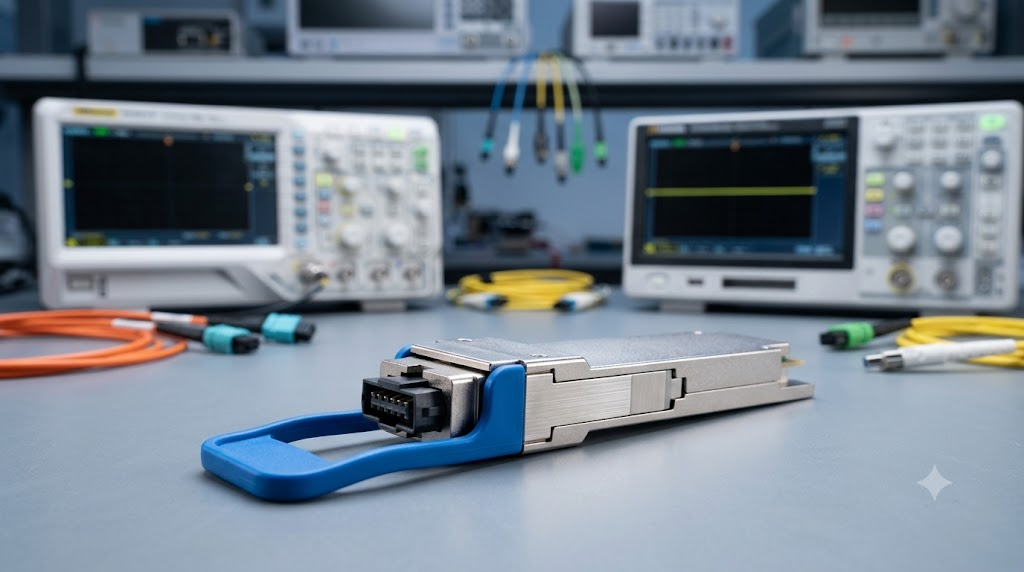

The 800G-DR8 QSFP-DD optical transceiver module is a high-speed optical transceiver module designed for 800G Ethernet connections up to 500m link length over single-mode fiber (SMF) via MTP/MPO-12 connectors. It is compliant with IEEE P802.3ck, IEEE 802.3cu, and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) provides access to real-time operating metrics. In addition, it has eight parallel channels with a central wavelength of 1310nm, and the data rate of each channel supports up to 106.25Gbps.
EML (Electro-absorption Modulated Laser) Technology
800G-DR8 QSFP-DD optical transceiver module uses EML (Electro-absorption Modulated Laser) technology. It has an electro-absorption modulator (EAM) integrated into a single chip. The laser diode operates under a continuous wave (CW) condition, and input on/off signals are applied to the EAM section to generate optical output signals. EML has low chromatic dispersion and chirp and high data rate transmission over long-distance.
Features and Benefits
·Hot-pluggable QSFP-DD form factor
·Maximum link length of 500m over SMF
·Maximum data rate of 850Gbps (8x 106.25Gbps)
·MTP/MPO-12 connector
·Operating temperature (0 to 70℃)
Applications
800G-DR8 QSFP-DD optical transceiver module is used in 800G Ethernet, data centers, breakout 2x 400G or 8x 100G, cloud networks, 5G, AI, high power computing (HPC), etc.
Conclusion
In conclusion, the 800G-DR8 QSFP-DD optical transceiver module delivers high-speed optical transmission that powers high-capacity 800G Ethernet connections in data centers and cloud network applications.
Sun Telecom specializes in providing one-stop total fiber optic solutions for all fiber optic application industries worldwide. Contact us if you have any needs.
